Surefire HL1 Helmet Light
Choose options
This product is fulfilled directly by HCC Tactical and may ship separately from other items ordered through Protection Design Concepts. Shipping charges, delivery times, promotional discounts, and other offers may be applied independently to HCC Tactical products and may differ from those applied to other items in your order.

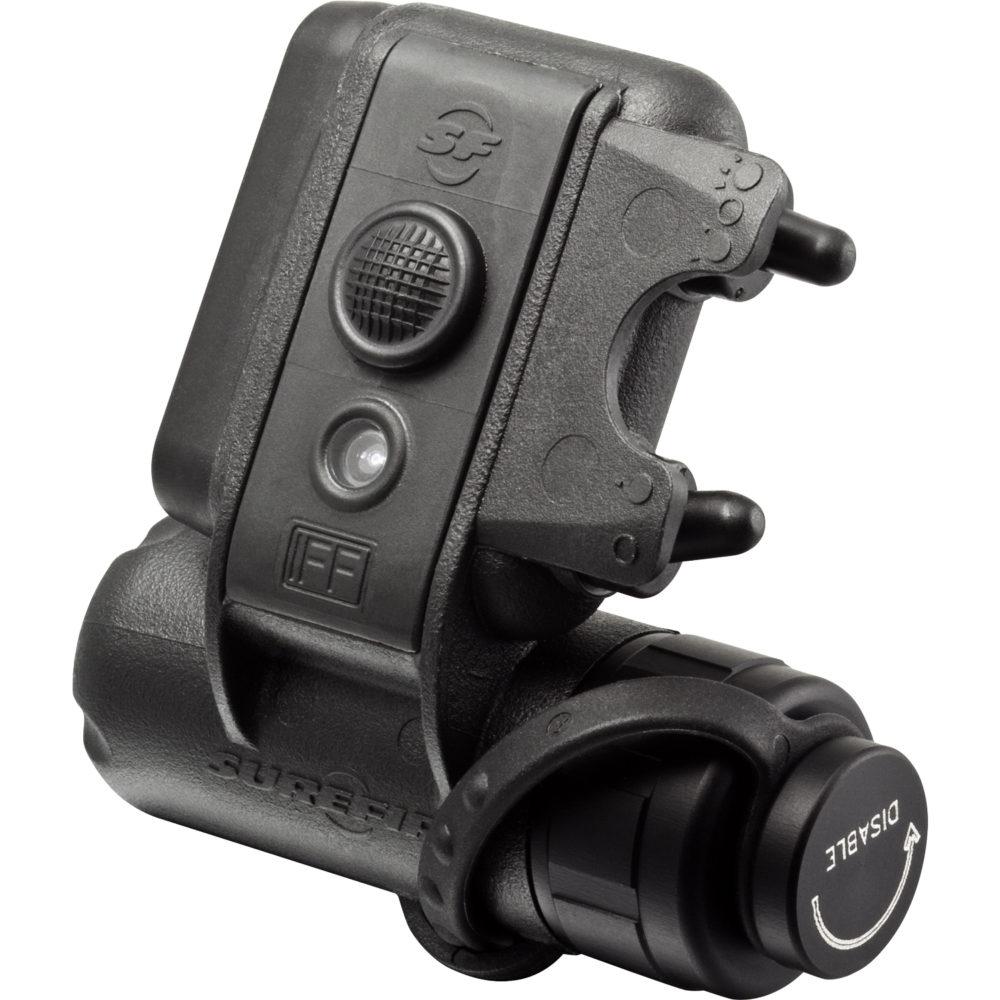

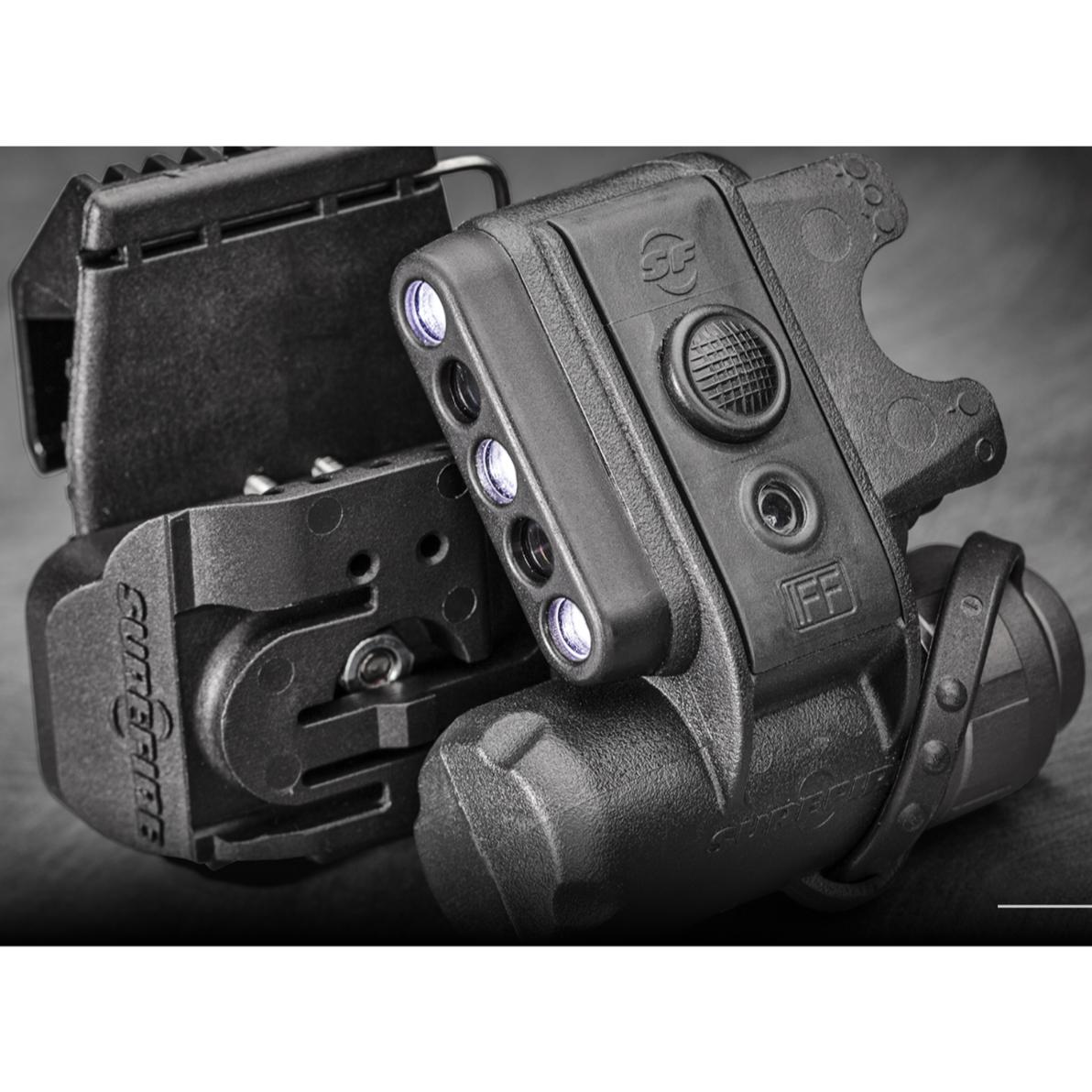

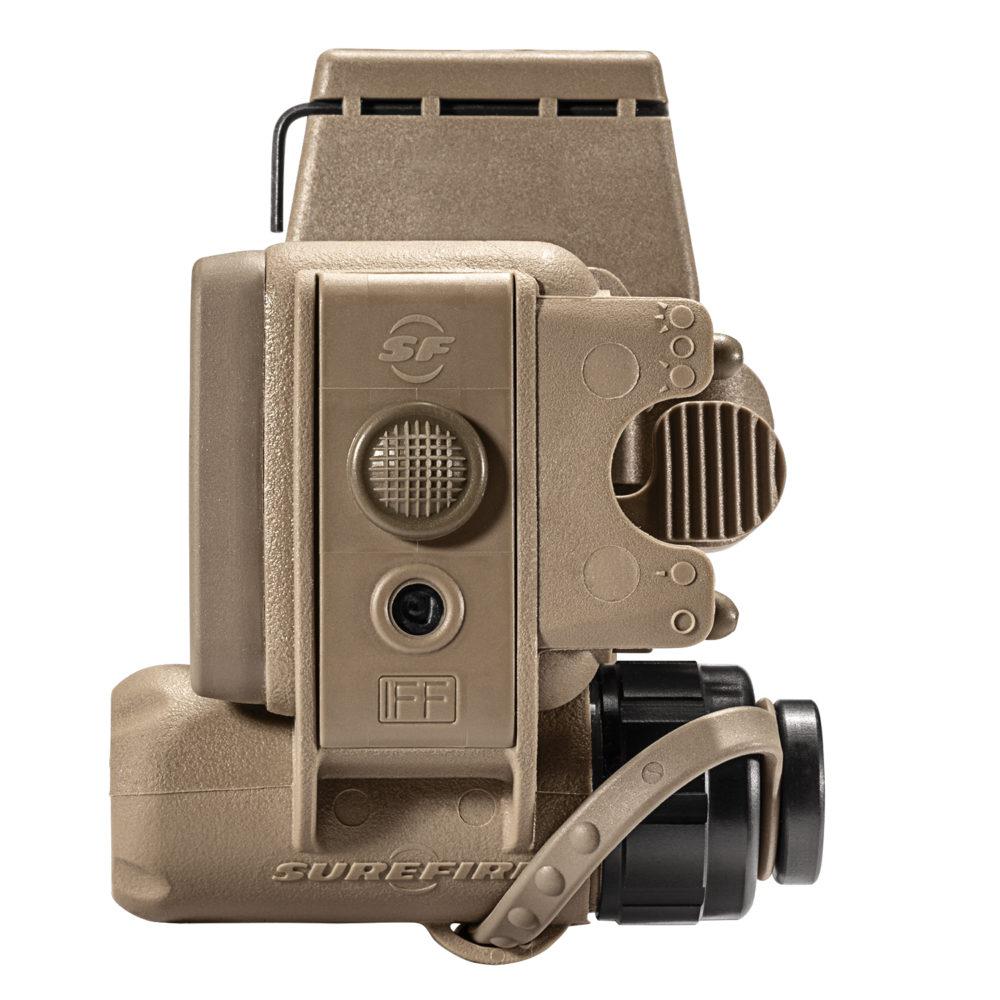

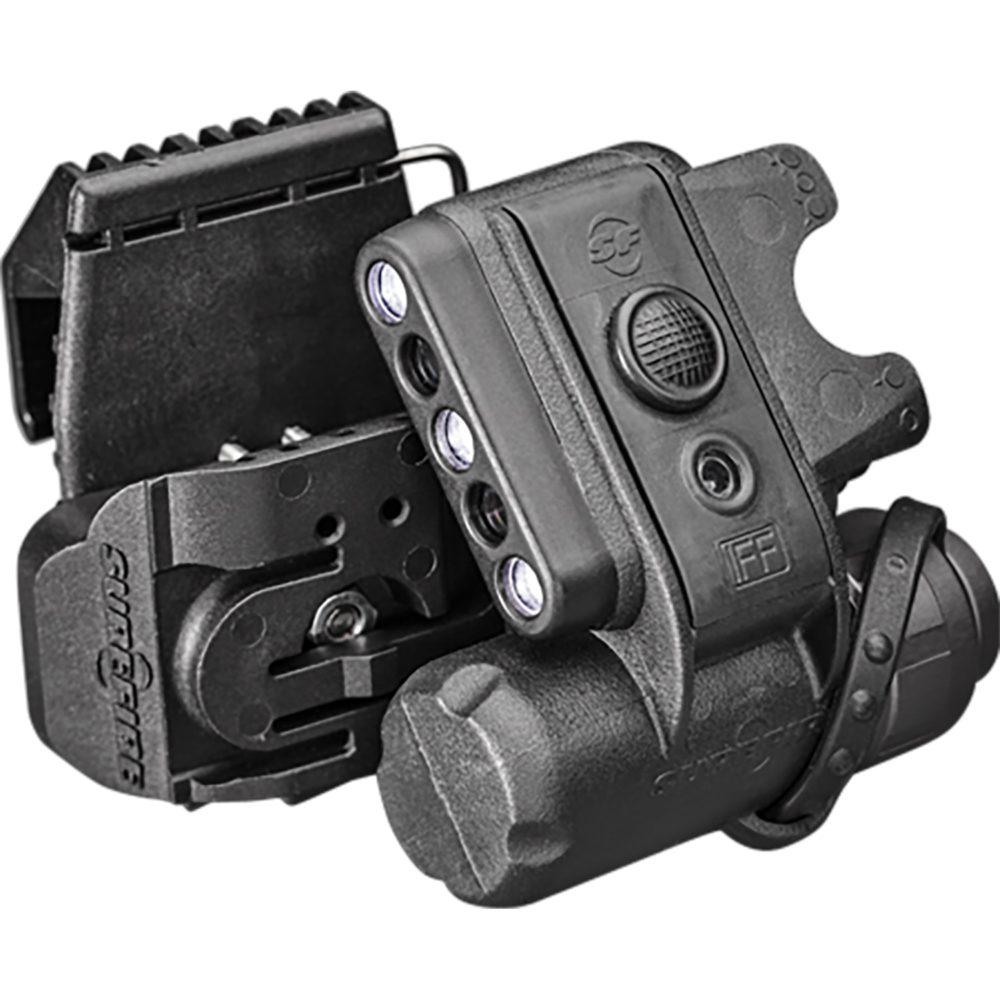

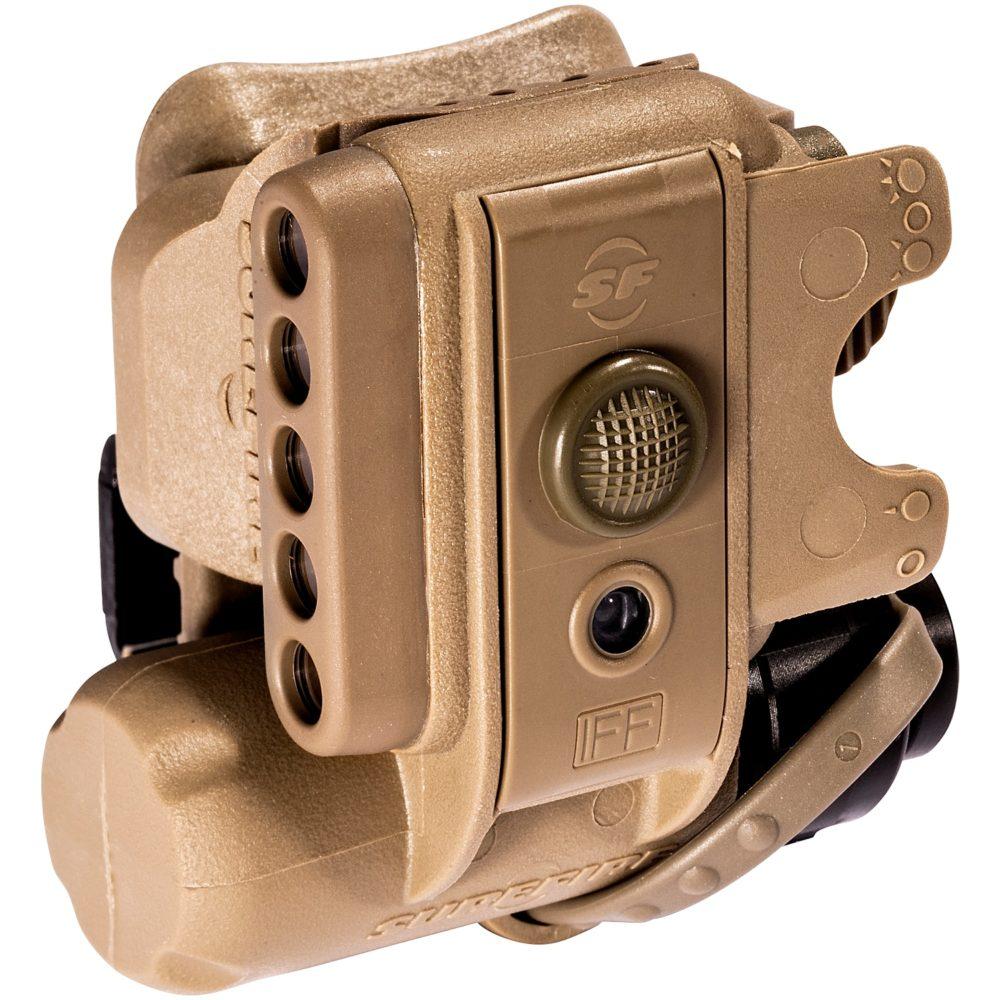

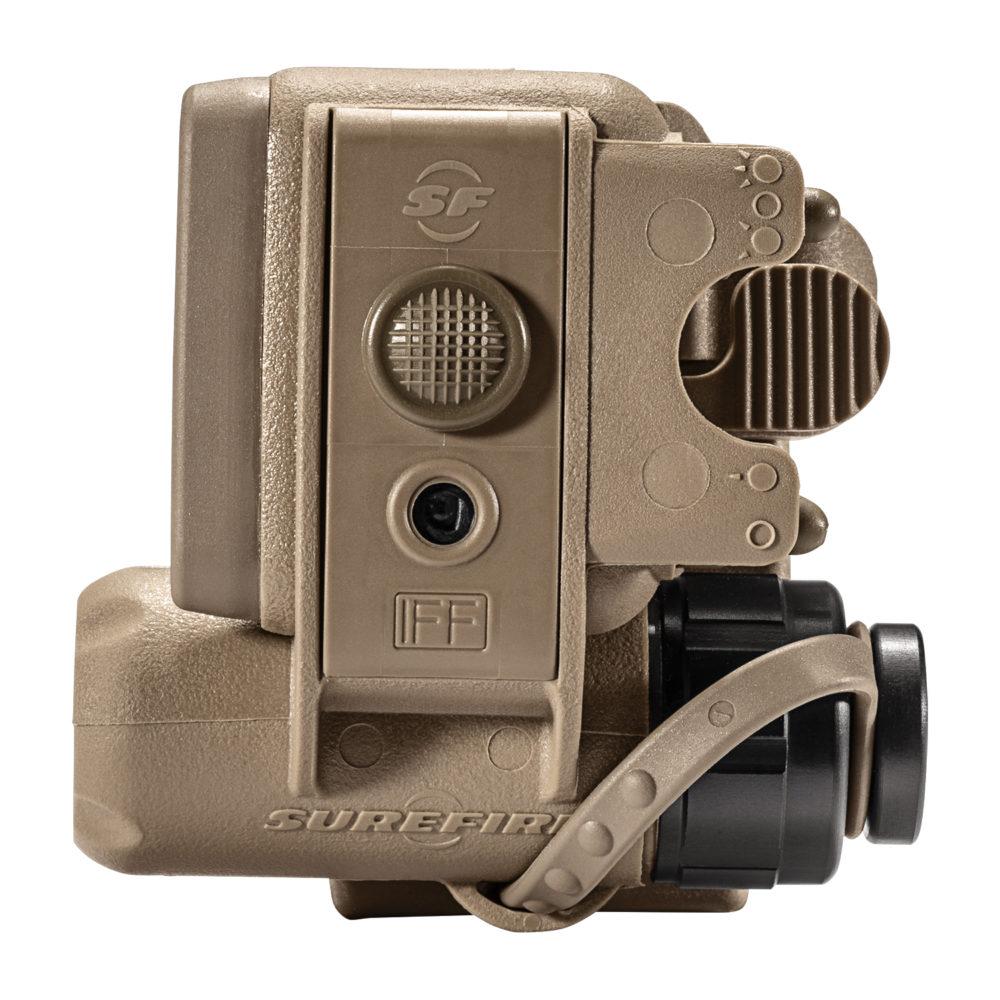

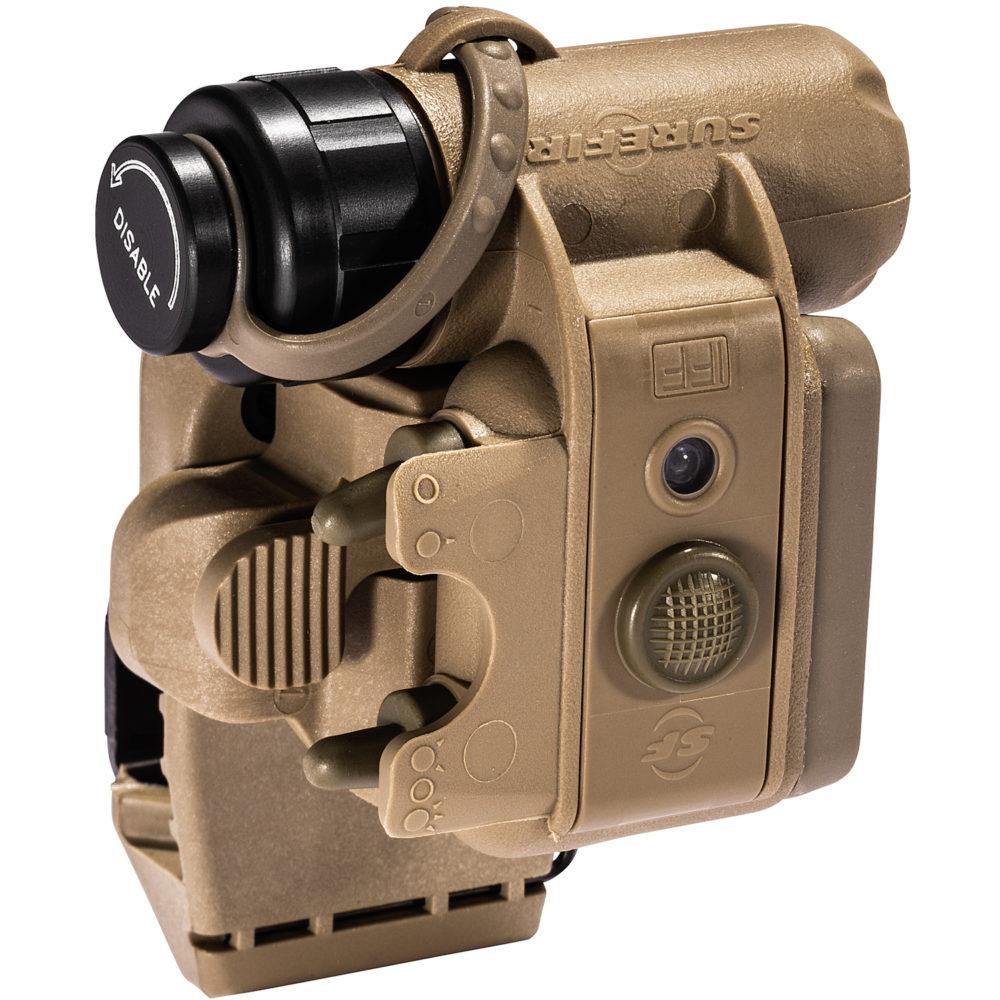

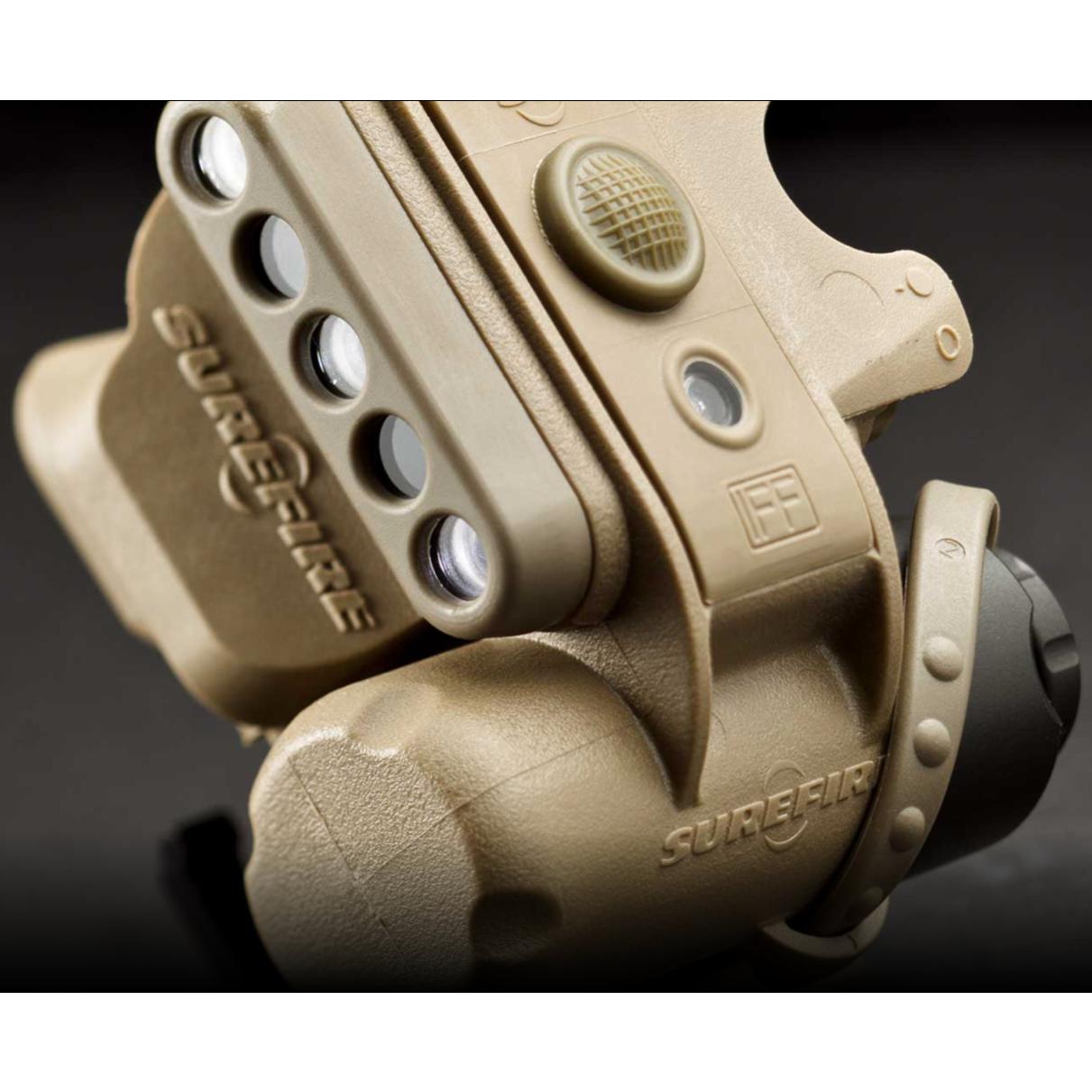

Go Head To Head With Darkness. The compact, variable-output HL1 HelmetLight features primary and secondary LEDs and one infrared Identify Friend or Foe (IFF) beacon.
The primary LEDs are perfect for general-purpose close-work illumination. The colored secondary LEDs serve the same purpose but in a low-signature, dark-adapted-vision-friendly color.

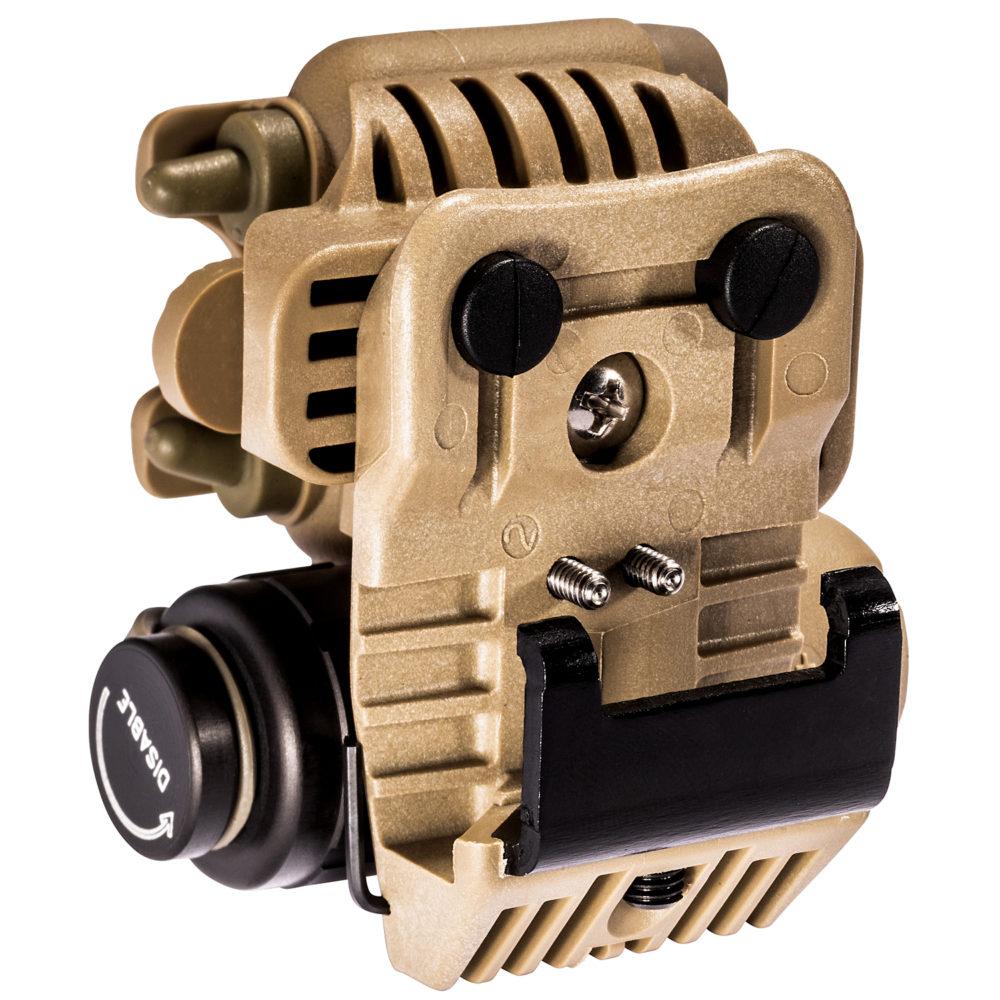

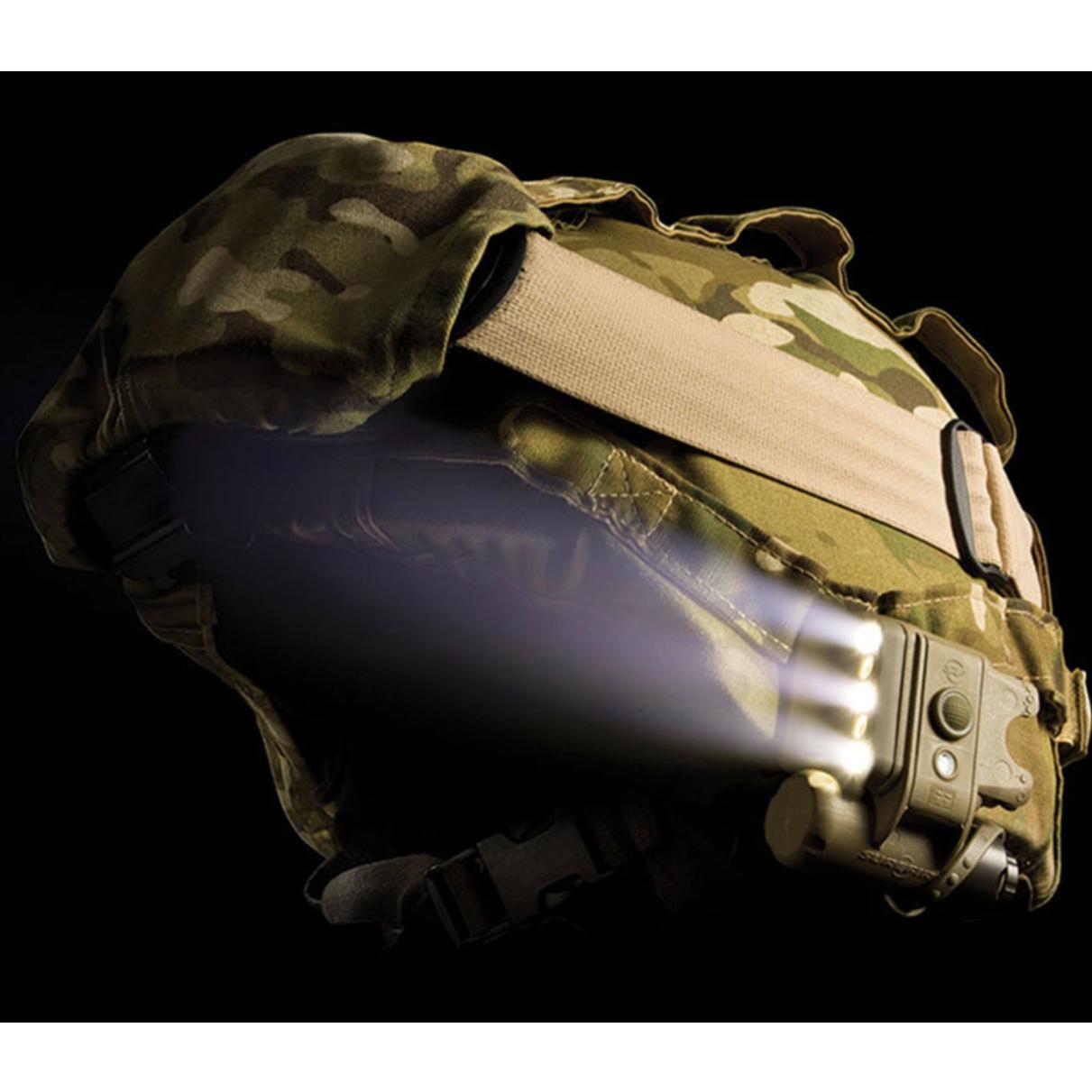

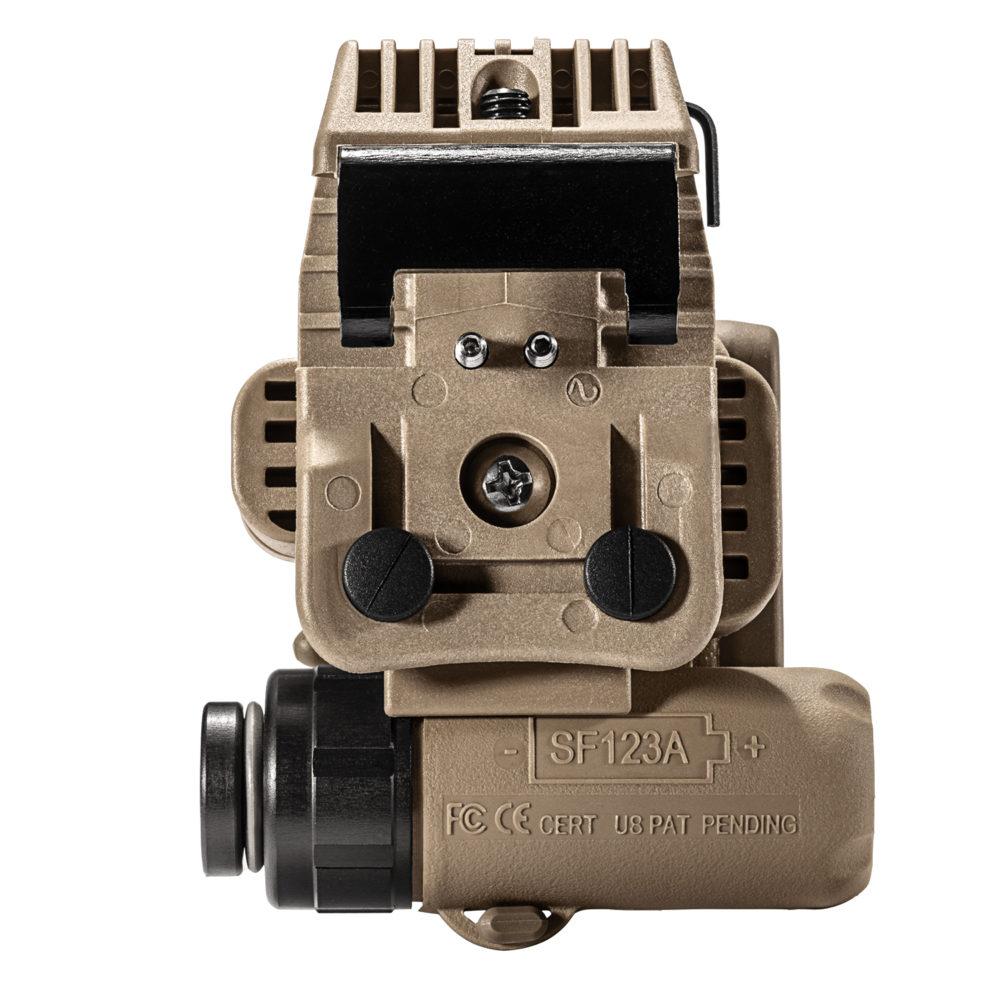

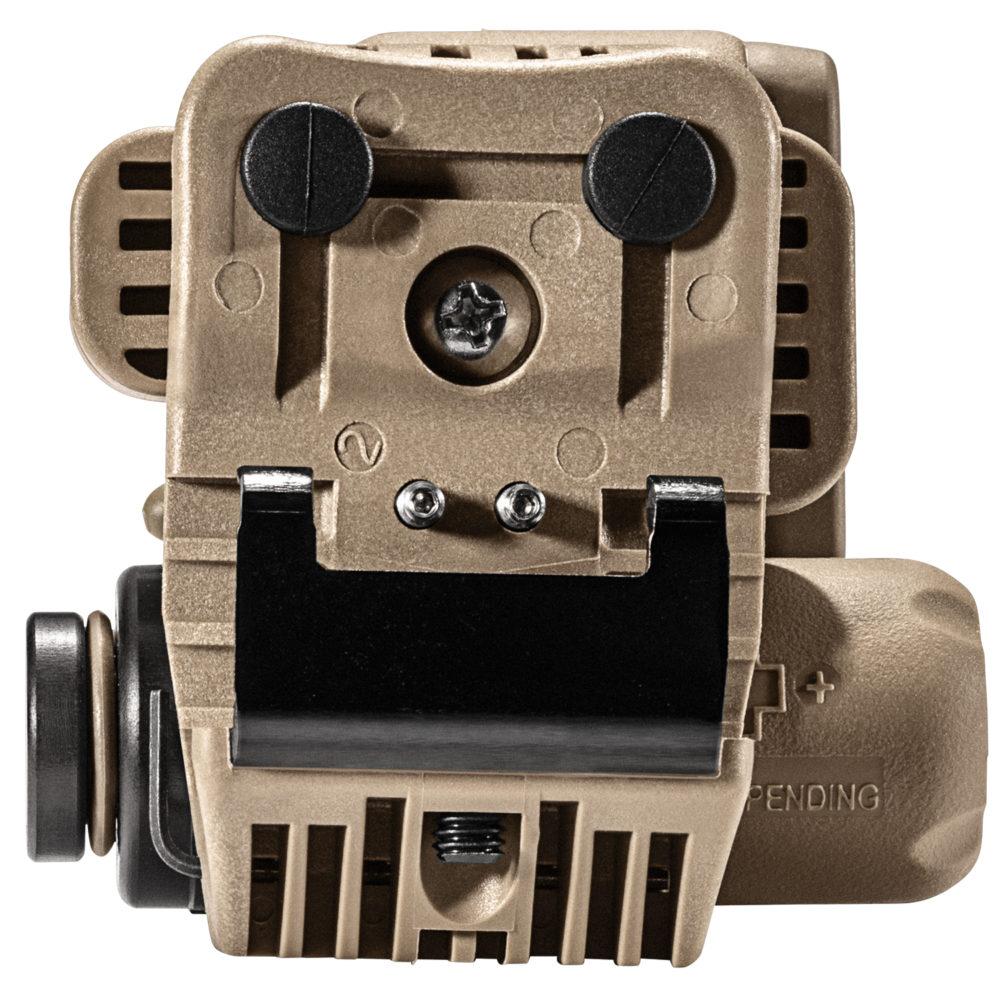

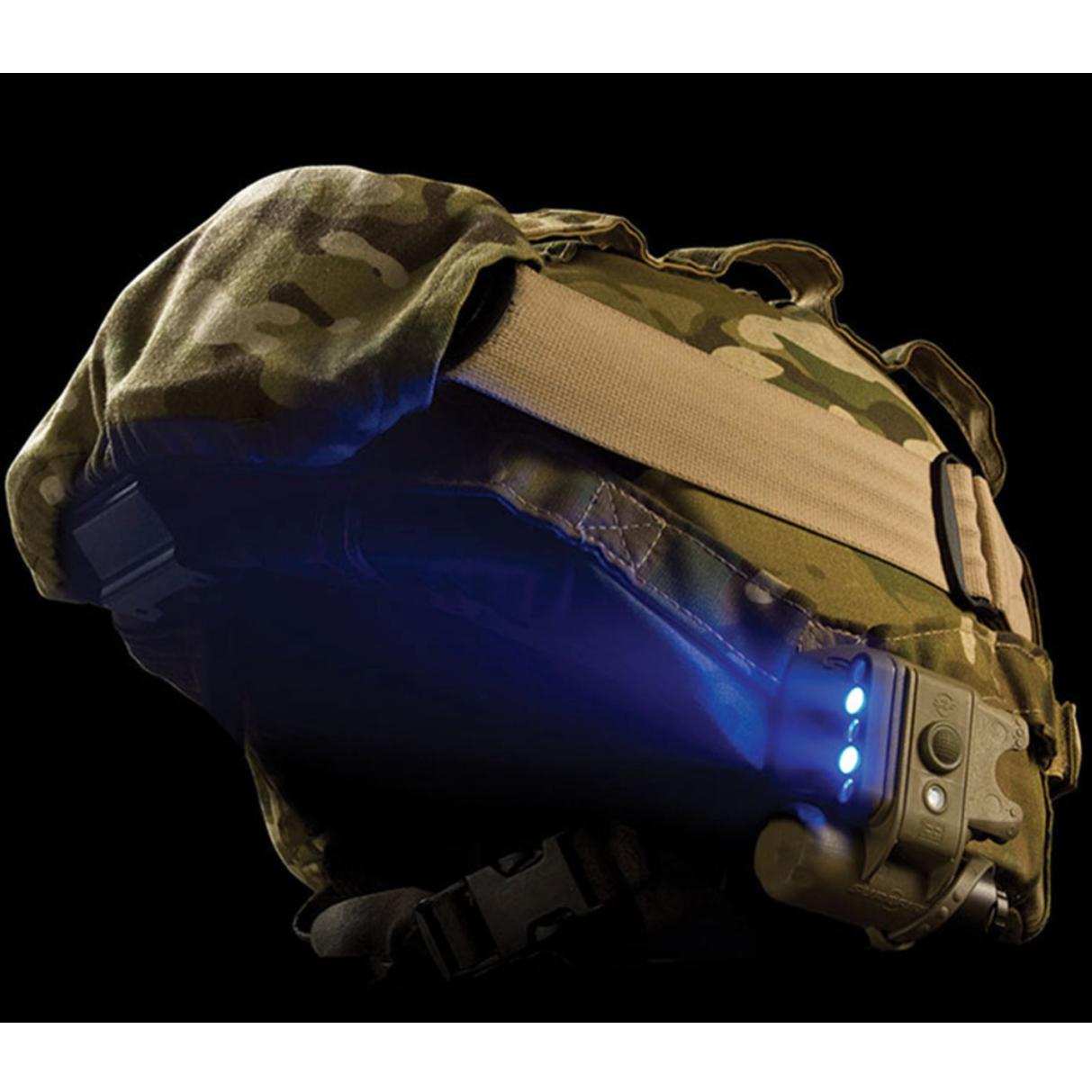

Its durable, watertight polymer body attaches to any Modular Integrated Communications Helmet (MICH) via an included ambidextrous mount with 20 preset positions for true 360-degree rotation. With the mount in place, the HelmetLight can be quickly and securely attached. Pressing a lever on the mount unlocks the light for quick removal. An optional Z71 carry clip mounts the light to any MOLLE or ALICE vest.
The HL1 is a highly versatile illumination tool for military, law enforcement, and tactical use.
- The ideal compact HelmetLight, with SureFire performance and durability
- Fast, secure mounting and easy removal; can be used on MOLLE or ALICE vests
- Multiple task-specific LEDs, with included personal Identify Friend or Foe (IFF) beacon
HL1-A-BK: Black Body, 3 White, 2 Blue, 1 Infrared IFF
HL1-C-TN: Tan Body, 3 White, 2 Red, 1 Infrared IFF
SPECIFICATIONS:
FEATURES:
- White and night-vision-friendly colored LEDs for close-quarter activities
- Blinking infrared LED serves as IFF beacon (all models)
- Infrared LEDs (some models) for use with night vision devices
- Two toggle switches and a pressure switch for total control
- Constructed of durable glass-filled nylon polymer and neoprene
- Easily removable for servicing or transfer to other helmets (Z71 mount required)
- O-ring sealed, watertight body for dependable all-weather service
- Long runtime from a single 123A battery with 10-year shelf life
KEY ATTRIBUTES:
-
High Output - 19.2 lumens (white; yellow green) / 2.5 lumens (blue; red) / 30.5 milliWatts (IR)
-
High Runtime - 48 hours (Low: white; yellow/green) / 96 hours (Low: red; blue) / 44 hours (Low: IR)
- Batteries - One 123A lithium (incl.)
- Switching - Toggle and dome switch
OUTPUT:
- White Output - High: 19.2 / Med: 5.0 / Low: 1.4 lumens
- White Runtime - High: 6 / Med: 28 / Low: 48 hours
- Yellow/Green Output - High: 19.2 / Med: 5.0 / Low: 1.4 lumens
- Yellow Green Runtime - High: 20 / Med: 48 / Low: 96 hours
- Red Output - High: 2.5 / Med: 0.8 / Low: 0.3 lumens
- Red Runtime - High: 20 / Med: 48 / Low: 96 hours
- Blue Output - High: 2.5 / Med: 0.8 / Low: 0.3 lumens
- Blue Runtime - High: 20 / Med: 48 / Low: 96 hours
- IR Output - High: 30.5 / Med: 10 / Low: 2.0 milliWatts
- IR Runtime - High: 6 / Med: 17 / Low: 44 hours
- IR IFF Strobe Output - 1.7 milliWatts
- IR IFF Strobe Runtime - 120 hours
BODY:
- Construction - High-impact polymer
- Weight w/ Batteries - Light: 2.4 oz (68 g); Light + Mount: 4.0 oz (113 g)
- Dimensions - 2.2 in x 3.2 in x 2.4 in (5.6 cm x 8.1 cm x 6.1 cm)
NSN:
- HL1-A-BK - 6220-01-594-0581
- HL1-A-TN - 6220-01-549-4174
- HL1-B-TN - 6220-01-549-4184
- HL1-C-TN - 6220-01-549-4203
- HL1-D-TN - 6220-01-549-4218
